Place your cursor on a small thumbnail below to see the caption. Then click on the thumbnail to see the full size picture. All the full size pictures average about 200 KB, so they should not take too long to download & view. Enjoy!! February, 2015 A year & a half after moving to Bracebridge, I started resurrecting the Southwood & Macey Bay model railroad. This page will be a step by step collection of photos of the construction over the weeks or months (or years). The latest photos are here.

Memories of the old Southwood & Macey Bay RR

The move, and in storage The room needed better lighting

Background sky colour decision Preparing for construction

First section framing is completed Yard is assembled "L" girders laid out where the 2 peninsulas will be

Far wall construction Peninsulas construction

Southwood Yard track work

Plywood for the towns and track sub roadbed has arrived

Severn River section started for bridges, river & ponds Working on the risers to secure the subroadbed

River area preparation

Homasote has finally come This will provide the level for the industry tracks & buildings

Roadbed installation started

Track going in, and more roadbed More track installed

New subroadbed Running the first train

Trackwork on the peninsulas finished Cleaning track

Working on the control panels This is taking a long time trying to figure out where all the wires go So not a lot of visible progress Still working on the control panels

Control panel getting finished

Next is to wire the switches But before, I wanted to remove 2 'S' curves. These can cause derailments, and look bad.

Time being spent changing the couplers on the cars Only about 1/3 of the cars had been done

Moving along Giving a view of what's here so far All these cars have their couplers done, finally

Reparing tracks too close together The siding at Little Chute was on a curve, and it got too close for 2 trains So I rearranged the curve

Reparing track too high The high track was too steep, and the locomotives had trouble pulling cars up So I lowered the highest point down an inch And reduced the grade up & down to 1.7% Reparing the dip The dip was causing cars to uncouple as the train when down & back up

Starting to electrify the switches

Replacing a switch that wasn't working

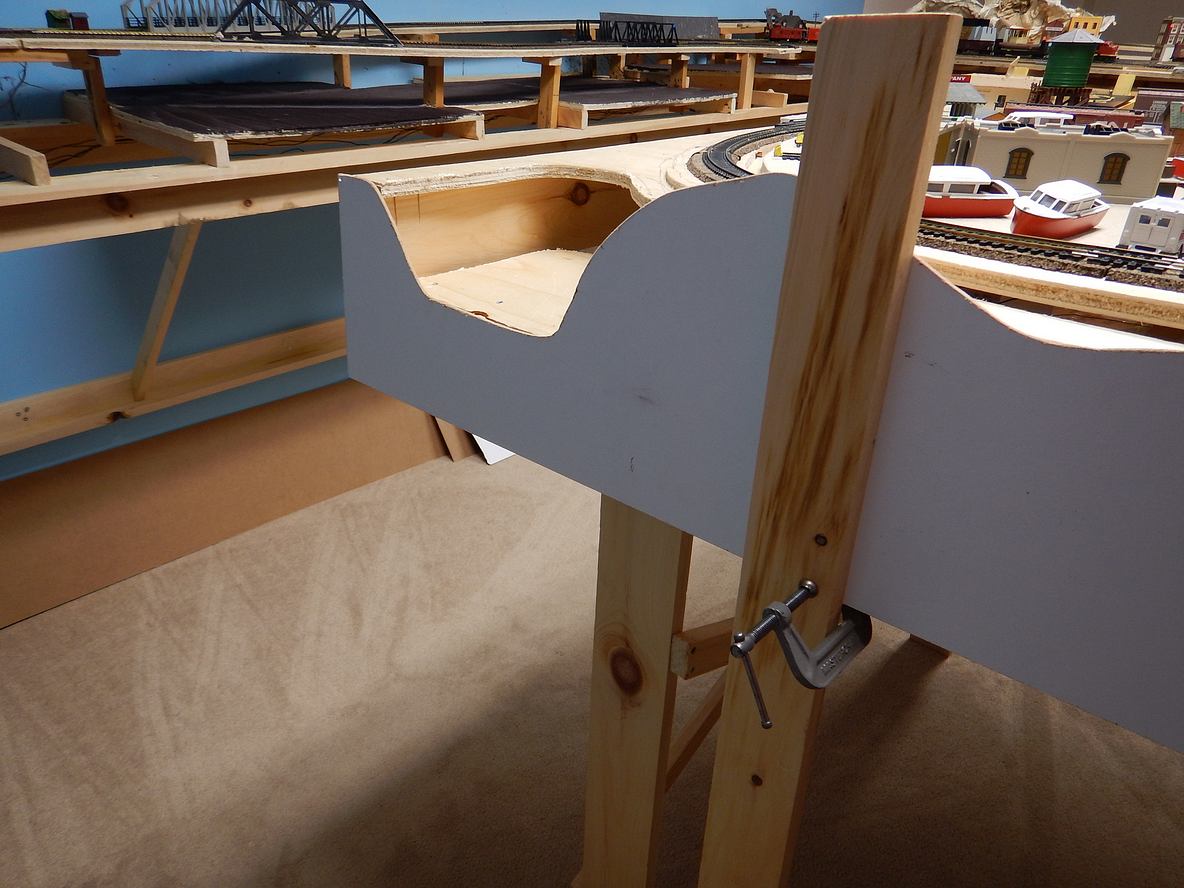

Start of water Muskoka water is black Starting with the fascia Fascia is the border around the edge of a layout To make it more neat

Fascia is installed, needs painting yet

The last pieces are now in place Update - Nothing to show for almost a year. Been working on getting remote throttles functioning properly. And running trains to get the bugs out

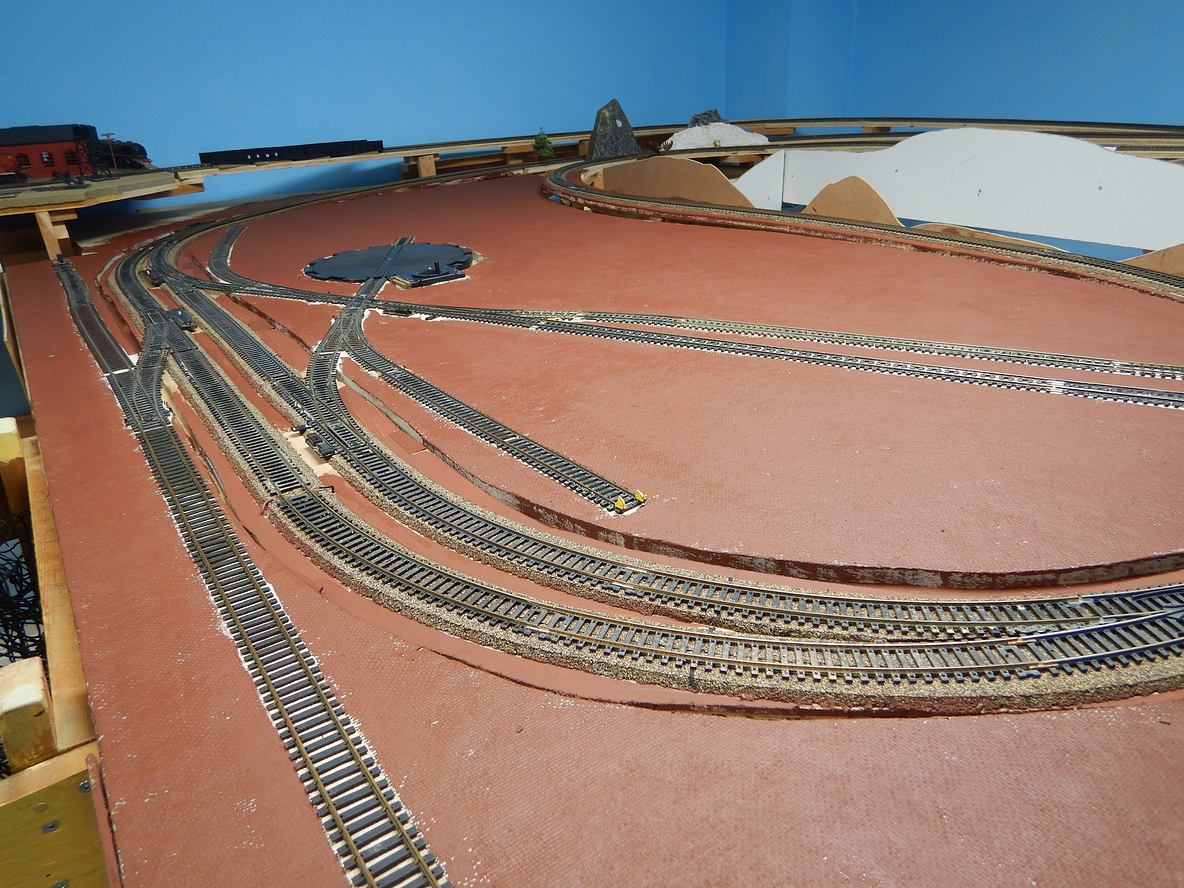

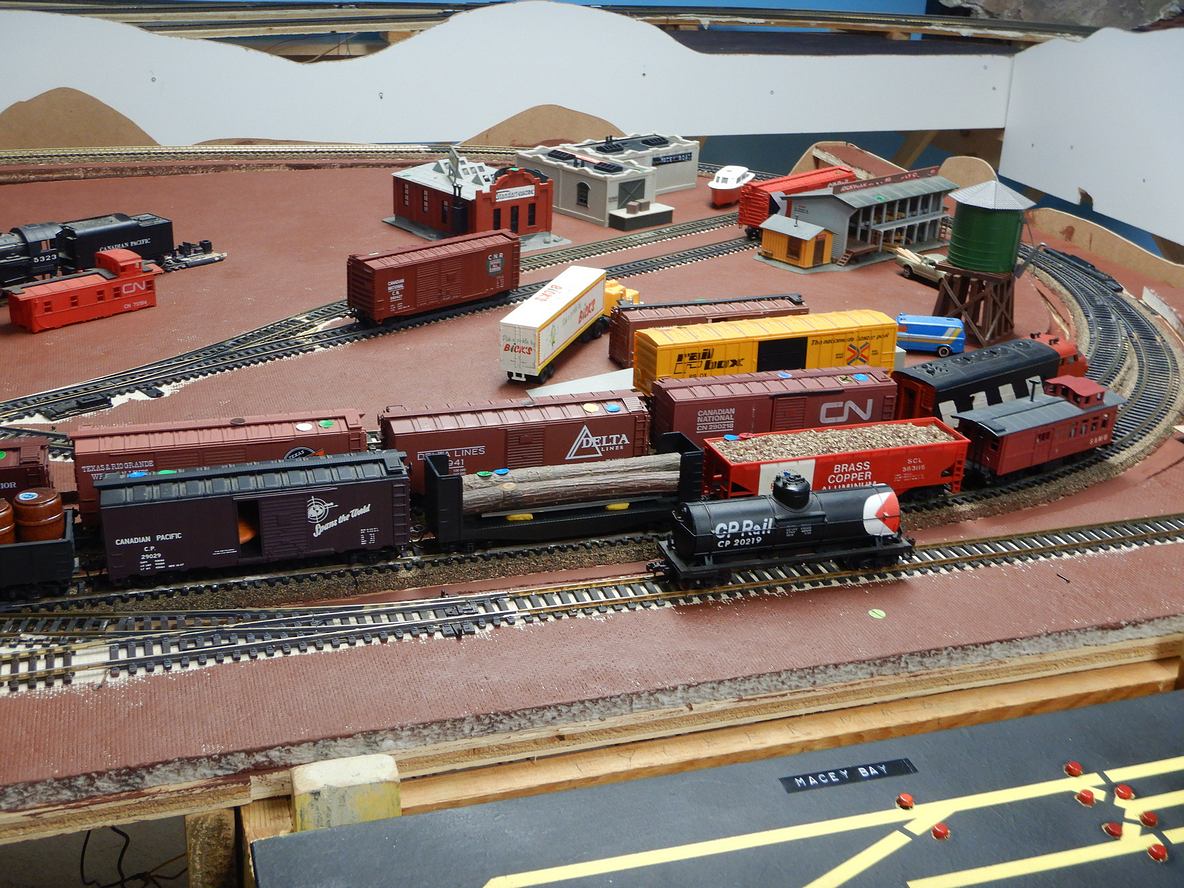

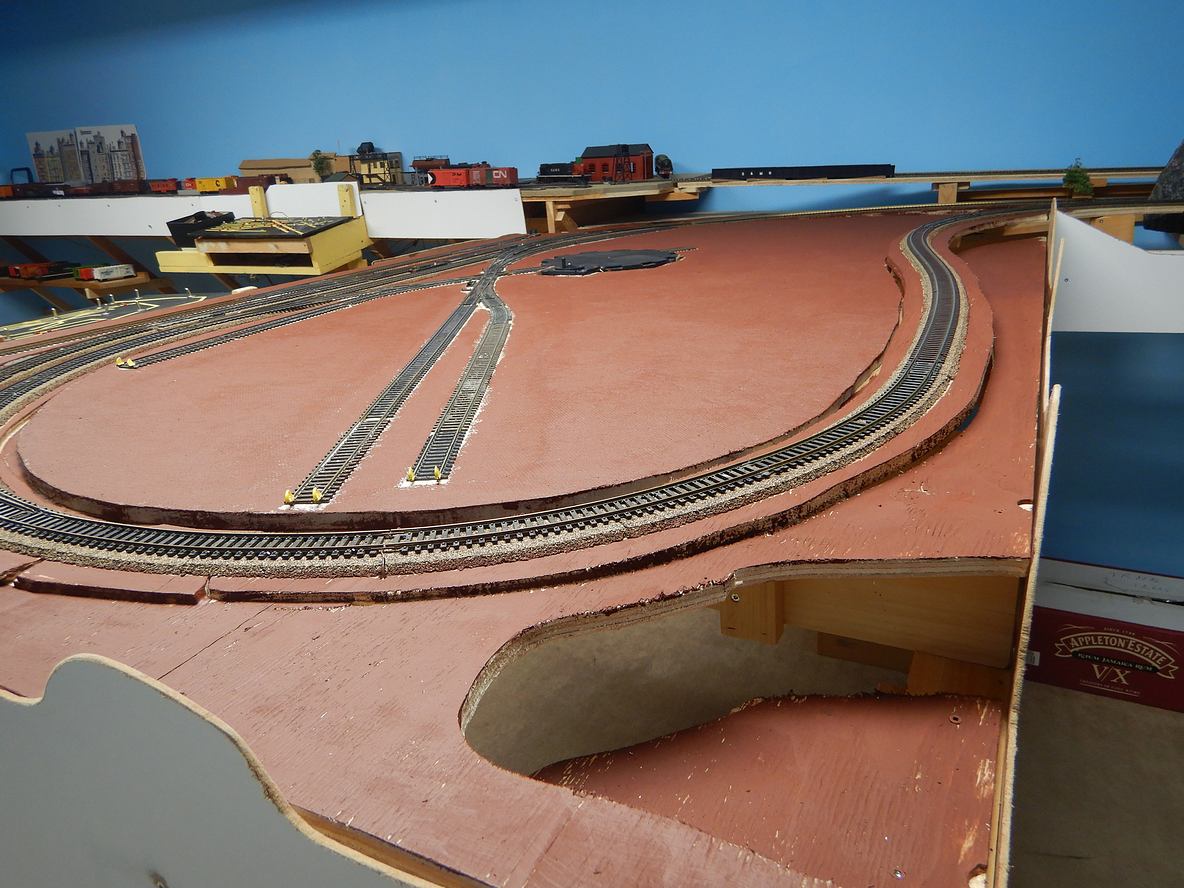

I decided to paint the ground brown to make it look more 'real'. I think it worked quite well. ;)

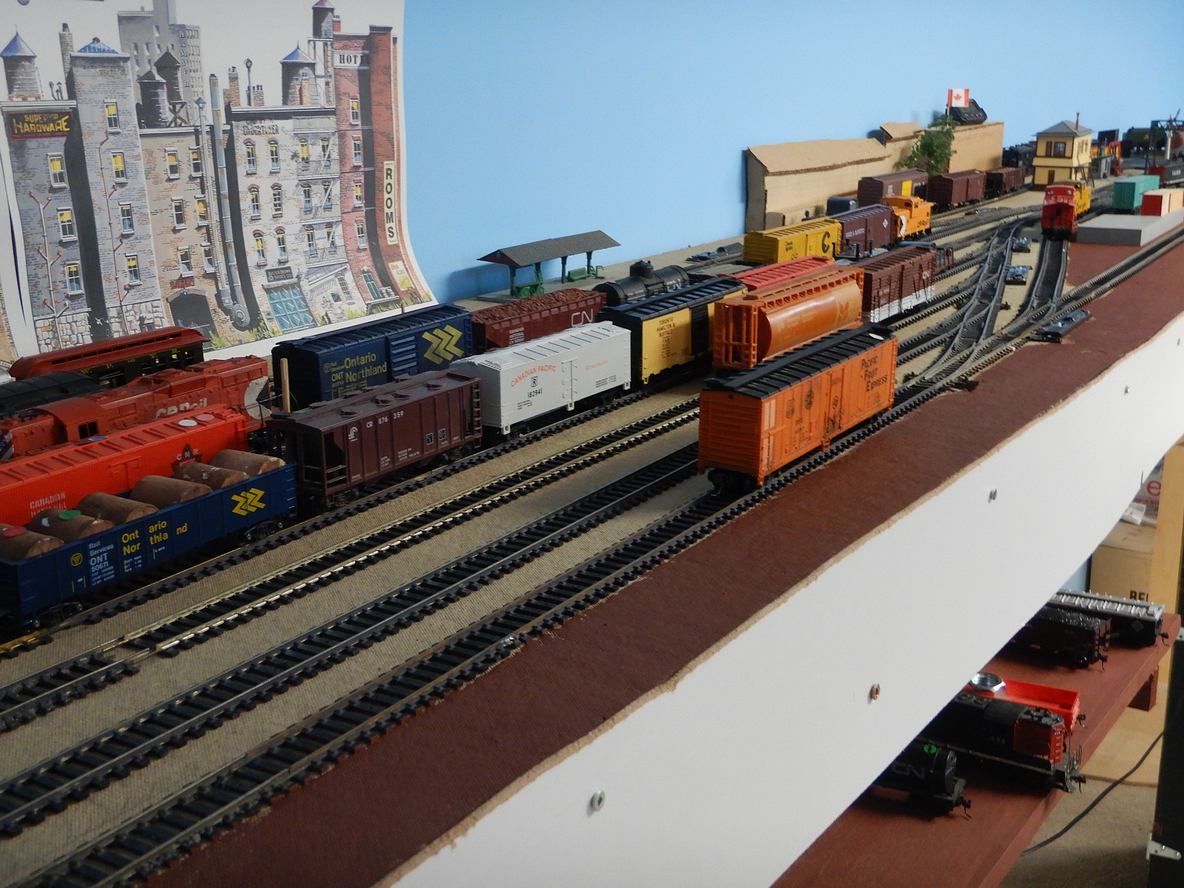

Next the yard
